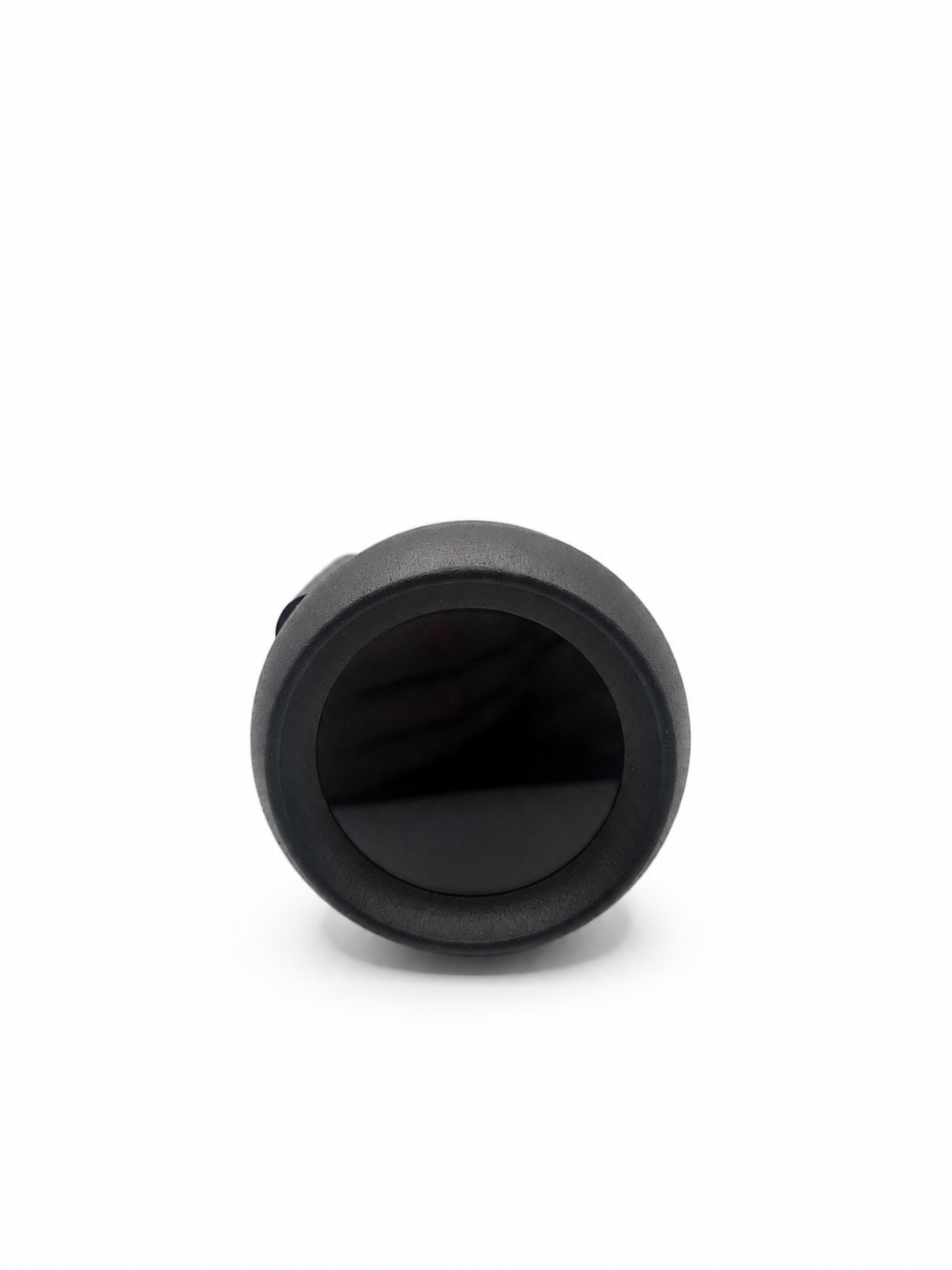

2 5/8" Round Digital Gauge

A single 2 5/8" digital gauge pod for an existing RestoTach system. Bigger numbers and a longer needle sweep than a 2 1/16", without the dash real estate a 3 3/8" demands. A good fit for secondary gauges you actually want to read at a glance, or for factory openings sized to this diameter.

What's included

• One fully digital LCD gauge pod, 400 nits. Easily readable.

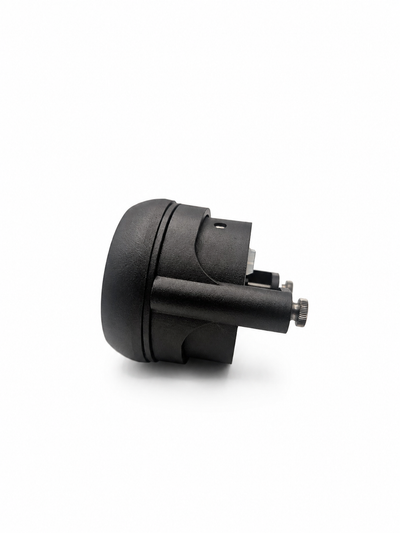

• Pod housing in PA12 (MJF), an industrial nylon that holds its shape through desert summer heat where standard printed or molded housings warp.

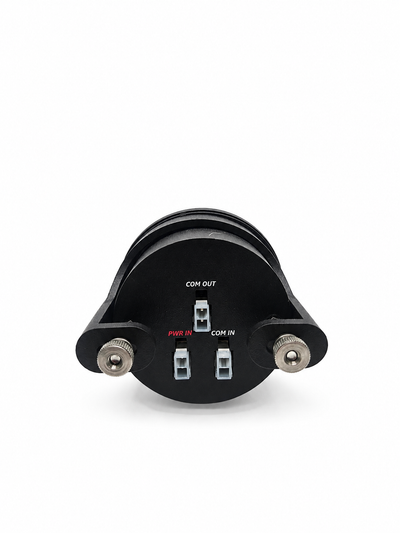

• Display power and communication wire.
• Mounting hardware.

Requires a RestoTach Main Hub

This pod is an addition to an existing RestoTach system, not a standalone gauge. It connects to your Main Hub over the display bus and configures from the companion app alongside the pods you already have. If you do not have a hub yet, start with a complete kit or add a Main Hub.

The hub supports up to seven displays total.

The same gauge, whatever the hub is reading

A pod does not care where the data comes from. Whether your hub runs direct sensors, OBD-II, or both at once, this display shows any parameter your system reports. Change the setup later and the pod follows.

Features

• Up to two parameters per gauge. Run dual analog or digital styles with customizable features.
• Turn signal indicators available. Left and right indicators can live on this gauge face, one side or both.
• Brightness control with automatic dimming. Set the level you want, or let it dim itself as the day turns over.
• Eleven built-in themes. Base, Sports, Obsidian, Alabaster, Cobalt, Neon, GT, Square Body, Stealth, Carbon, and Classic White. Match the pods you already have, or run something different.
• Full customization. Needle style, tick marks, numerals, custom face uploads, custom needle uploads, and full 360° face rotation, so the gauge reads level no matter how the pod ends up mounted.
• Updates over the air. New features and themes download through the companion app straight to the display.

Fitment

Pod outer diameter matches the opening. Measure your bezel clearance and depth behind the dash before ordering.

Not intended for street use.

Specifications
